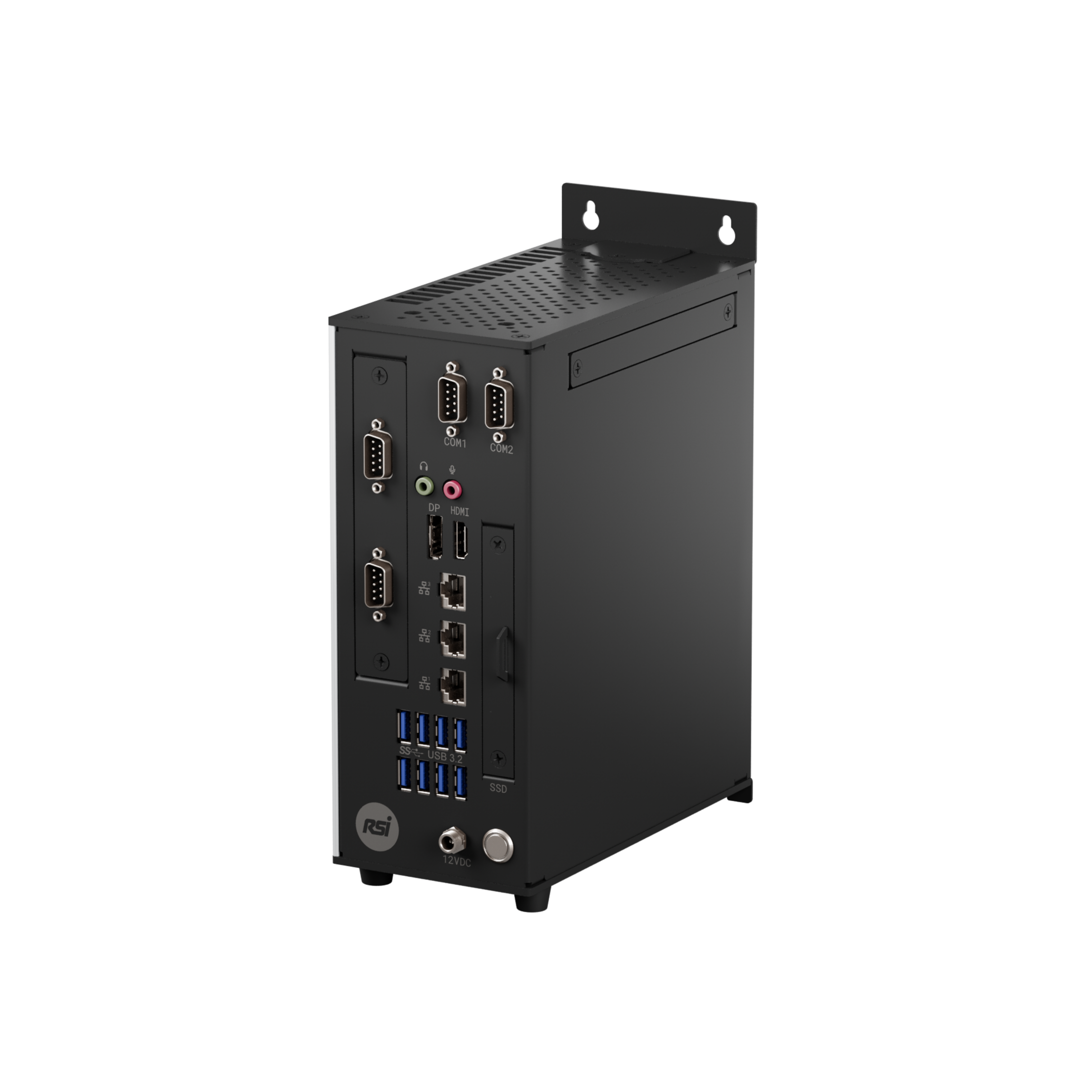

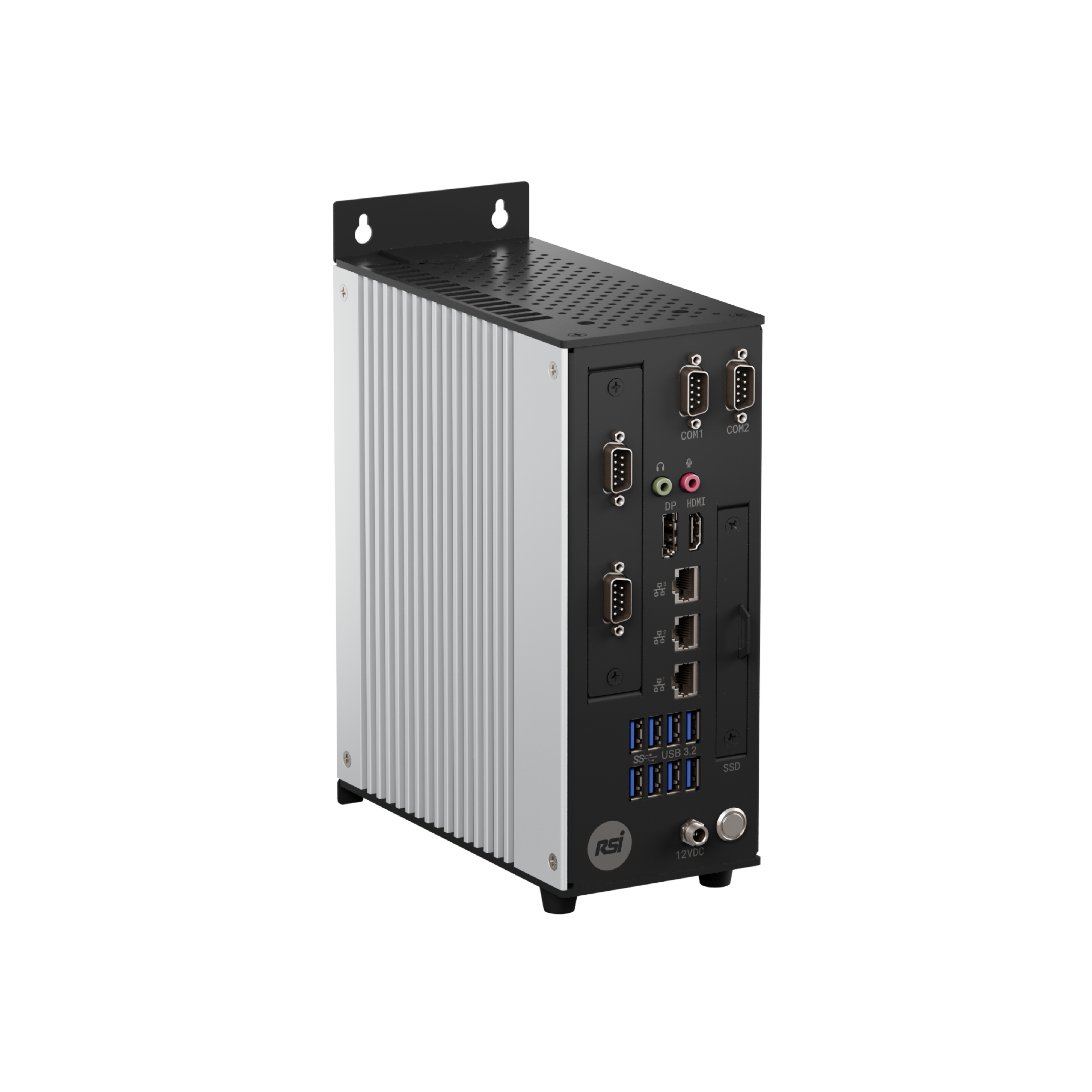

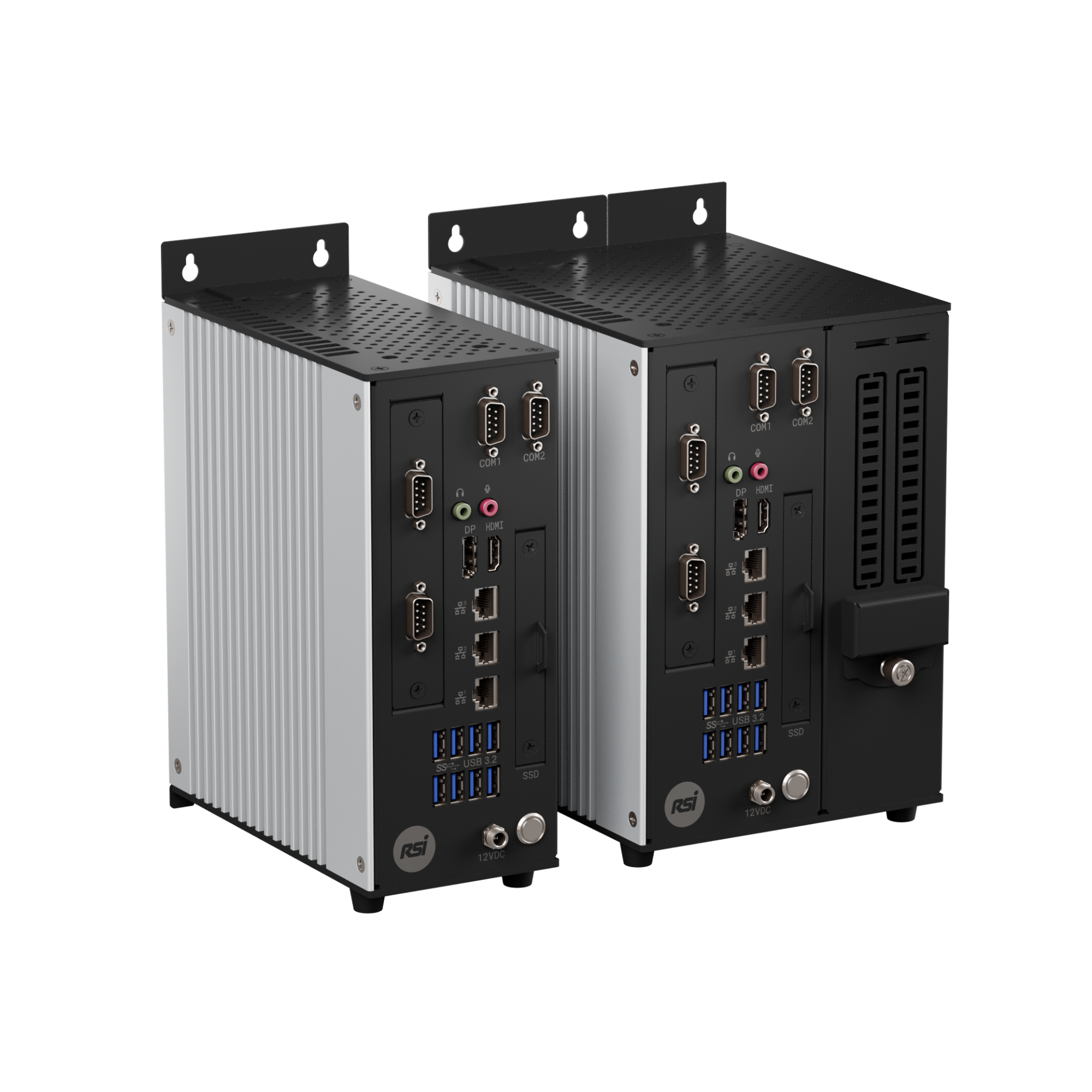

Industrial PCs

Main Memory

- 2 x DDR4 SO-DIMM socket, supports 2133MHz and up to 8GB with un-buffered and non-ECC type

Display Option

- Dual independent display HDMI + DVI-D

Front I/O Interface Status LEDs

- 1 x battery/ 1 x C-Fast LEDs
- 4 x GPO status/ 2 x Tx/ Rx LEDs
- 1 x power/ 1 x HDD access LEDs

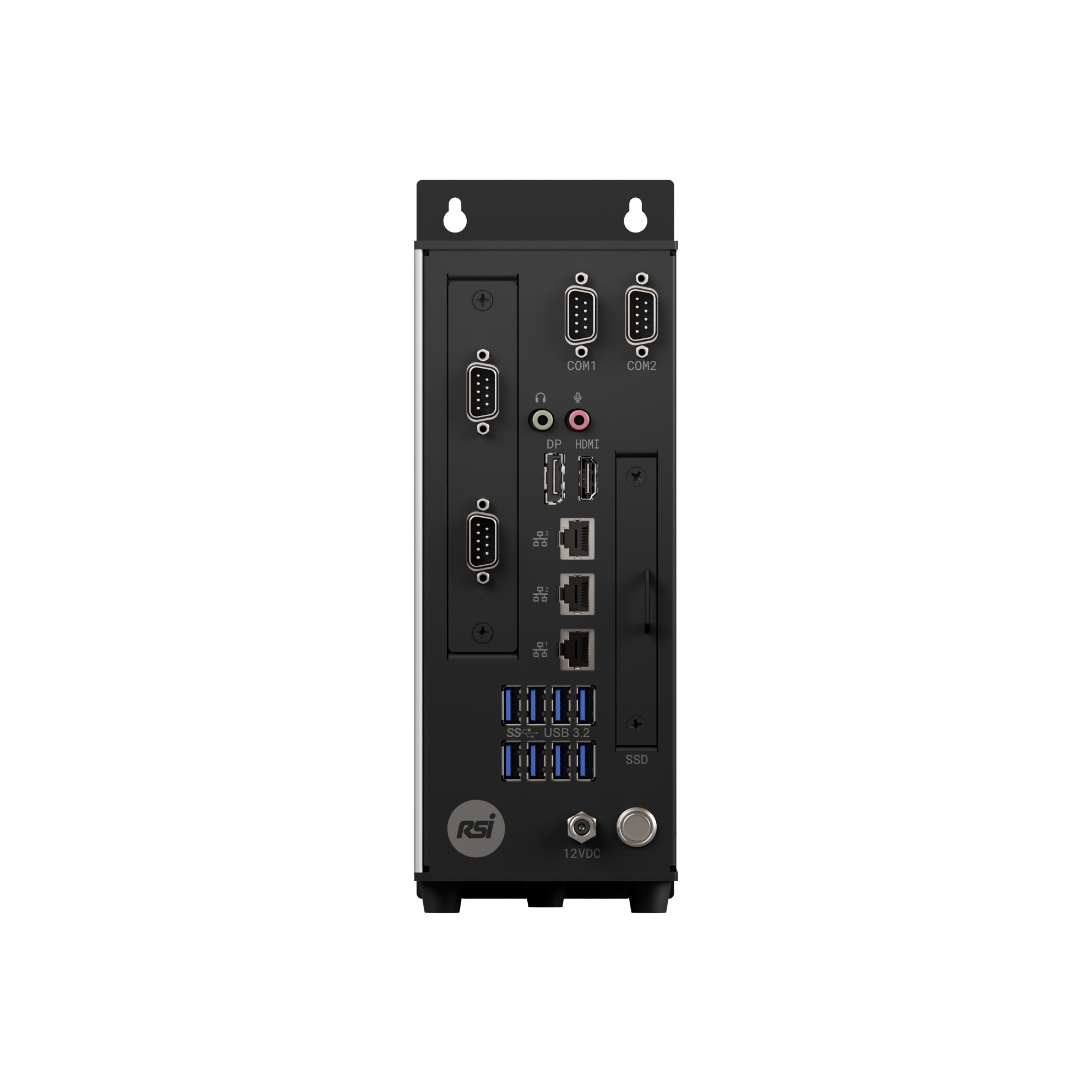

Front I/O Interface

- 1 x ATX power on/ off switch
- 1 x HDMI and 1 x DVI-D
- 3 x USB 3.0 ports (900mA per each)
- 2 x USB 2.0 ports (500mA per each)
- 1 x Line-out and 1 x Mic-in
- 2 x Antenna holes for WI-FI/ GSM
- 1 x Front access 2.5” HDD tray
- 1 x Mini PCIe expansion support optional modules
- 2 x RS232/422/485 auto with 2.5KV Isolation
- 3 x Intel® I210IT GbE LAN ports, support WoL, teaming and PXE

Top I/O Interface

- 1 x 3-pin remote switch
- 1 x CFast expansion
- 1 x SIM card

Storage Device

- 1 x CFast (SATA 3.0)
- 1 x 2.5” HDD (external, SATA 3.0)
- 1 x 2.5” HDD (internal, SATA 3.0)
- 1 x mSATA (via internal mini PCIe socket)

Expansion Slot

- iPC 300P2: two PCI expansion slots
↪ Add-on card length: 180mm max
↪ Power consumption: 10W/slot max
- iPC300P2E: one PCI expansion slot, and one PCIe x8 expansion slot
↪ Add-on card length: 180mm max
↪ Power consumption: 10W/slot max
- iPC300E2: One PCIe x4, and one PCIe x8 expansion slot
↪ Add-on card length: 180mm max
↪ Power consumption: 10W/slot max

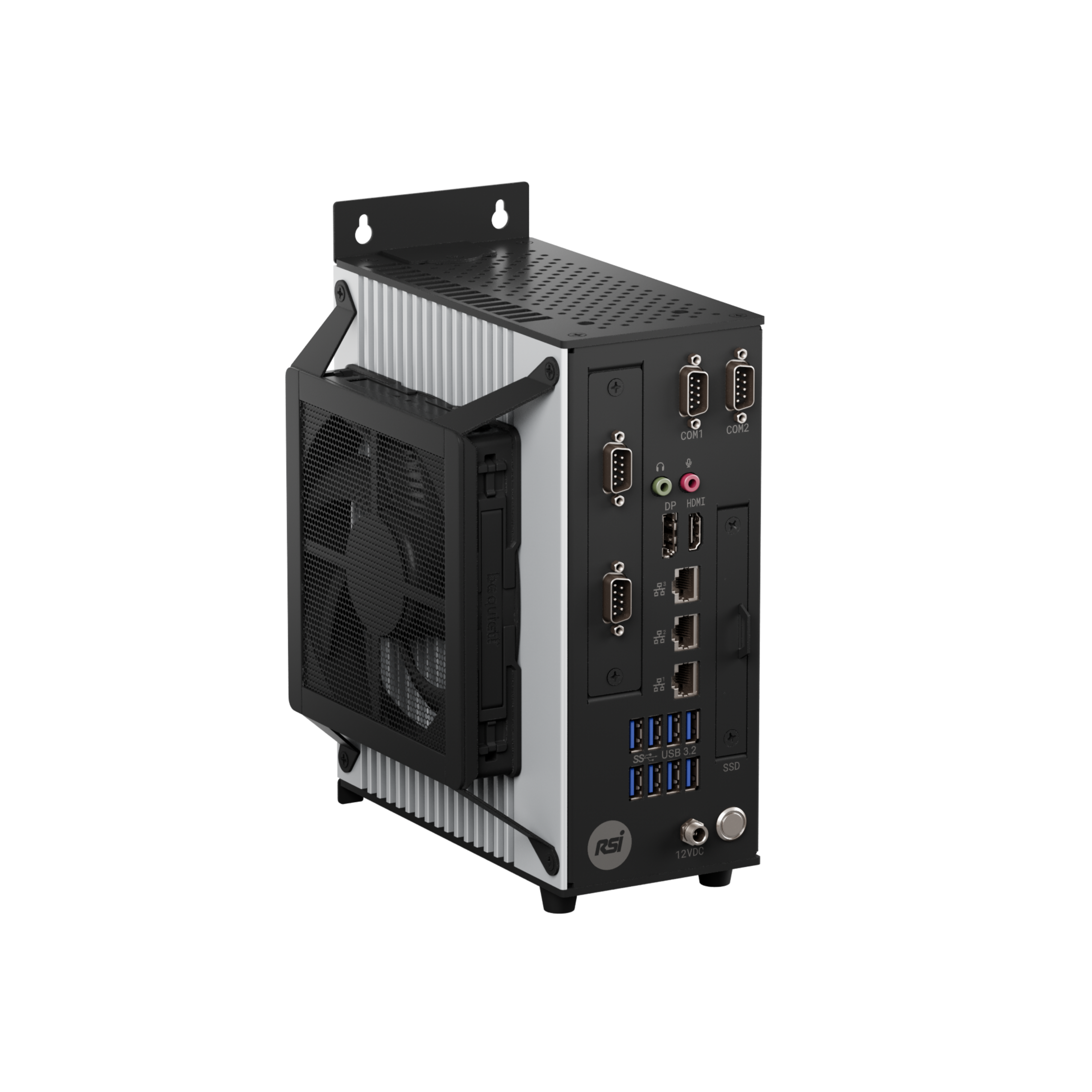

- iPC 300E16: one PCIe x16 expansion slot (fan kit installed)
↪ Add-on card length: 180mm
↪ Power consumption: 60W/slot max

Power Requirement

- AT/ ATX power mode (default with ATX power mode)
- Power input: typical +24VDC +/- 20%, with reverse polarity protection
- Power adapter: optional AC to DC power adapter (+24Vdc, 120W or 180W)

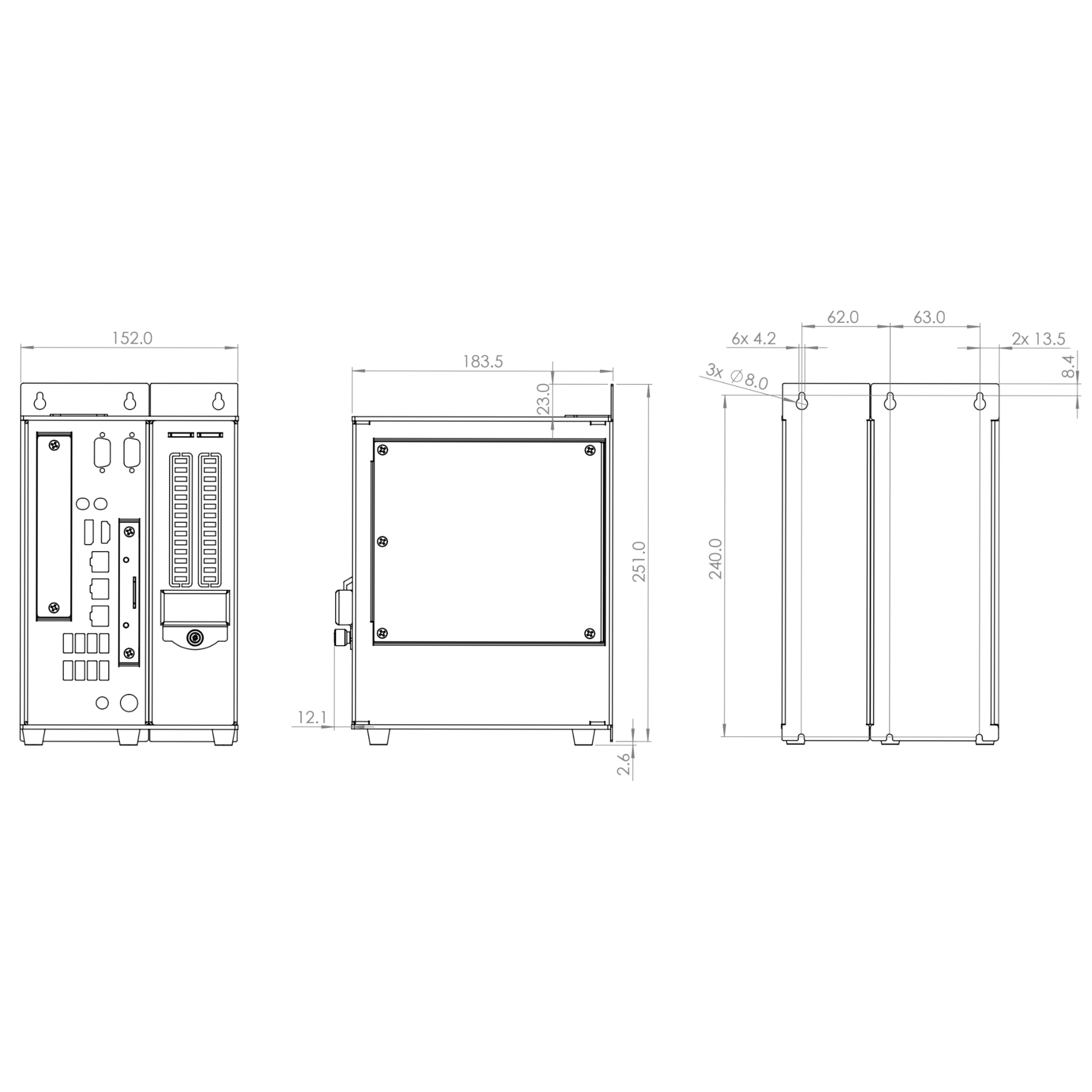

Dimensions

- iPC300P2: 155 mm(W) x 185mm (D) x 251mm (H)
- iPC300P2E: 155 mm(W) x 185mm (D) x 251mm (H)
- iPC300E2: 155 mm(W) x 185mm (D) x 251mm (H)
- iPC300E16: 155 mm(W) x 185mm (D) x 251mm (H

Construction

- Aluminum and metal chassis with front access design

Environment

- Operating Temperature:
↪ Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
- Storage Temperature: -20°C to 85°C
- Relative Humidity: 10% to 93% (non-condensing)
- Shock Protection:
↪ HDD: 20G, half sine, 11ms, IEC60068-27
↪ CFast: 50G, half sine, 11ms, IEC60068-27
- Vibration protection w/HDD condition:
↪ Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
↪ Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-64

Certifications

- CE Approval
↪ EN61000-4-2
↪ EN61000-4-4
- FCC Class A
- LVD

Main Memory

- 2 x DDR4 SO-DIMM socket, supports 2133MHz and up to 8GB with un-buffered and non-ECC type

Display Option

- Dual independent display HDMI + DVI-D

Front I/O Interface Status LEDs

- 1 x battery/ 1 x C-Fast LEDs
- 4 x GPO status/ 2 x Tx/ Rx LEDs
- 1 x power/ 1 x HDD access LEDs

Front I/O Interface

- 1 x ATX power on/off switch
- 1 x HDMI and 1 x DVI-D4 x USB 3.0 ports (900mA per each)
- 2 x USB 2.0 ports (500mA per each)
- 1 x Line-out and 1 x Mic-in
- 2 x Antenna holes for WI-FI/GSM
- 1 x Front access 2.5” HDD tray
- 1 x Mini-PCIe expansion support optional modules
- 2 x RS232/422/485 auto with 2.5KV Isolation
- 3 x Intel® I210IT GbE LAN ports, support WoL, teaming and PXE

Top I/O Interface

- 1 x 3-pin remote switch
- 1 x CFast expansion
- 1 x SIM card

Storage Device

- 1 x CFast (SATA 3.0)
- 1 x 2.5” HDD (external, SATA 3.0)
- 1 x 2.5” HDD (internal, SATA 3.0)
- 1 x mSATA (via internal mini PCIe socket)

Expansion Slot

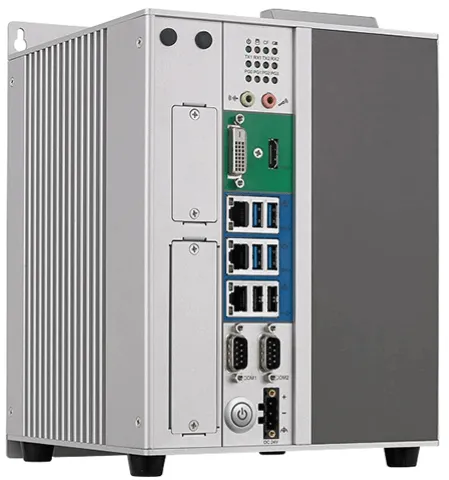

- iPC 300P3: two PCI expansion slots and one PCIe x8 expansion slot
↪ Add-on card length: 180mm max
↪ Power consumption: 10W/slot max
- iPC 300E3: one PCIe x8 and two PCIe x4 expansion slot
↪ Add-on card length: 180mm max
↪Power consumption: 10W/slot max
- iPC 300E16: one PCIe x16 expansion slot
↪ Add-on card length: 180mm
↪ Power consumption: 30W/slot max

Power Requirement

- AT/ATX power mode (default with ATX power mode)
- Power input: typical +24VDC +/- 20%, with reverse polarity protection
- Power adapter: optional AC to DC power adapter (+24Vdc, 120W or 180W)

Dimensions

- iPC 300P2: 155 mm(W) x 185mm (D) x 251mm (H)
- iPC 300P3: 175 mm(W) x 185mm (D) x 251mm (H)
- iPC 300E3: 175 mm(W) x 185mm (D) x 251mm (H)

Construction

- Aluminum and metal chassis with front access design

Environment

- Operating Temperature:
↪ Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
- Storage Temperature: -20°C to 85°C
- Relative Humidity: 10% to 93% (non-condensing)
- Shock Protection:
↪ HDD: 20G, half sine, 11ms, IEC60068-27
↪ CFast: 50G, half sine, 11ms, IEC60068-27
- Vibration protection w/HDD condition:
↪ Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
↪ Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-64

Certifications

- CE approval
↪ EN61000-6-2
↪ EN61000-6-4
- FCC Class A
- LVD

Main Memory

- 2 x DDR3L SO-DIMM socket, support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC

Display Option

- Dual independent display DVI-I and DP

Front I/O Interface

- ATX power on/off switch
- LEDs for HDD LED, Batty LEDs, Power LED, COM port Tx/Rx, 5x programmable GPO LEDs
- 1 x External SD Card
- 1 x SIM card holder
- 2 x Intel® I210AT GbE LAN ports, support WoL, Teaming and PXE
- 1 x DP display output
- 1 x DVI-I display output
- 1 x USB 3.0 (900mA per each)
- 3 x USB 2.0 (500mA per each)
- 1 x 3-pin DC input, Typical 24V DC input with +/-20% range
- 2 x RS232/422/485 support auto flow control
- Jumper-free setting on RS232/422/485
- Support 2.5KV isolation protection on COM1

Storage Device

- 1 x 2.5" SSD/HDD(SATA 2.0) --front accessible
- 1 x SD card (Data storage only)
- 1 x mSATA

Expansion Slot

- 2 x Mini-PCIe socket for optional Wi-Fi/3.5G/4G LTE/Fieldbus modules

Power Requirement

- Typical 24V DC input with +/-20% range, with reverse polarity protection
- 1 x optional 24V, 60W power adapter

Dimensions

- 85mm (W) x 157mm (D) x 214mm (H)

Construction

- Aluminum and metal chassis with fanless design

Environment

- Operating temperature:
↪ Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
- Storage temperature: -20°C to 80°C
- Relative humidity: 10% to 95% (non-condensing)
- Shock protection:
↪ HDD: 20G, half sine, 11ms, IEC60068-2-27
↪ SSD: 50G, half sine, 11ms, IEC60068-2-27
- Vibration protection w/ SSD condition:
↪ Random: 2Grms @ 5~500Hz, IEC60068-2-64
↪ Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-64

Certifications

- CE Approval
↪ EN61000-6-2
↪ EN61000-6-4
- FCC Class A
- LVD
- UL60950

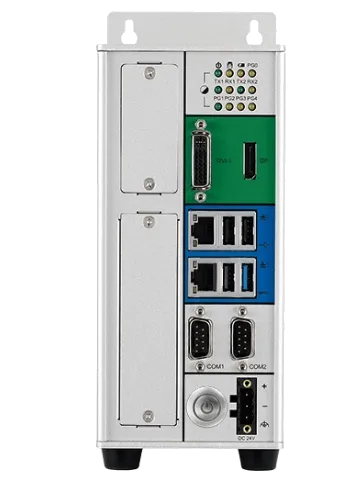

Main Memory

- 2 x DDR3L SO-DIMM socket, support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC

Display Option

- Dual independent display (DVI-I and DP)

Front I/O Interface

- ATX power on/off switch
- LEDs for HDD LED, Batty LEDs, Power LED, COM port Tx/Rx, 5x programmable GPO LEDs
- 1 x External SD Card
- 1 x SIM card holder
- 2 x Intel® I210AT GbE LAN ports, support WoL, Teaming and PXE
- 1 x DP display output
- 1 x DVI-I display output
- 1 x USB 3.0 (900mA per each)
- 3 x USB 2.0 (500mA per each)
- 2 x RS232/422/485 support auto flow control
- Jumper-free setting on RS232/422/485
- Support 2.5KV isolation protection on COM1
- 1 x 3-pin DC input, Typical 24V DC input with +/-20% range

Storage Device

- 1 x 2.5" SSD/HDD(SATA 2.0) --front accessible
- 1 x SD card (Data storage only)1 x mSATA

Expansion Slot

- iPC 200P2: two PCI expansion
↪ Add-on card length: 176mm max.
↪ Power consumption: 10W/slot max.
- iPC 200P2E: one PCI and one PCIe x4 expansion
↪ Add-on card length: 176mm max.
↪ Power consumption: 10W/slot max.
- iPC 200E2: two PCIe x1 expansion
↪ Add-on card length: 176mm max.
↪ Power consumption: 10W/slot max.
- 2 x mini-PCIe socket for optional Wi-Fi/3.5G/4G LTE/fieldbus modules

Power Requirement

- Typical 24V DC input with +/-20% range, with reverse polarity protection1 x optional 24V, 60W power adapter

Dimensions

- 151mm (W) x 157mm (D) x 230mm (H)

Construction

- Aluminum and metal chassis with fanless design

Environment

- Operating temperature:
↪ Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
- Storage temperature: -20°C to 80°C
- Relative humidity: 10% to 95% (non-condensing)
- Shock protection:
↪ HDD: 20G, half sine, 11ms, IEC60068-2-27
↪ SSD: 50G, half sine, 11ms, IEC60068-2-27
- Vibration protection w/ SSD condition:
↪ Random: 2Grms @ 5~500Hz, IEC60068-2-64
↪ Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-64

Certifications

- CE Approval
↪ EN61000-6-2
↪ EN61000-6-4
- FCC Class A
- LVD
- UL60950

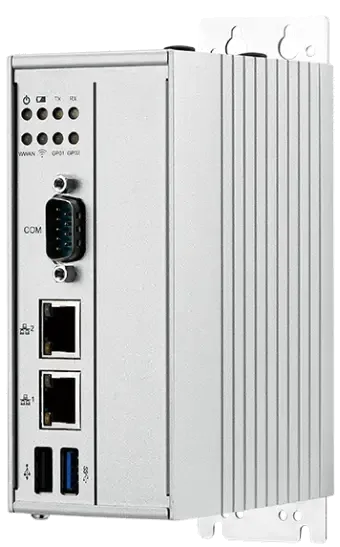

Main Memory

- Onboard type 4GB DDR3L RAM (J1900), un-buffered and non-ECC

Display Option

- HDMI

I/O Interface-Front

- LED for power, battery, TX, RX, WWAN, WLAN, GPO1, GPO2
- 1 x RS-232/485 with auto flow control (support 2.5KV isolation protection)
- 2 x Intel® I211 GbE LAN controller (both jumbo frame: 9KB)
- 1 x USB 3.0 ports (900mA per each)
- 1 x USB 2.0 ports (500mA per each)

I/O Interface-Top

- 1 x HDMI port
- 1 x System reset button
- 1 x 4-in/4-out 5V GPIO via 10-pin terminal block (5V/TTL type)

Storage Device

- Optional mSATA module (no eMMC onboard)

Expansion Options

- 1 x Full size mini-PCIe socket
↪ USB & mSATA signal
- 1 x Half size mini-PCIe socket for optional Wi-Fi/4G/3.5G/LTE modules (USB signal & PCIe signal)

Power Requirement

- Power input: typical +24VDC ±20%
- 1 x Optional 24V, 60W power adapter

Dimensions

- 56.5mm (W) x 100mm (D) x 130mm (H)

Construction

- Aluminum and metal chassis with front access design

Environment

- Operating temperature:
↪ Ambient with air flow: -5~50°C for NIFE 104M (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
- Storage temperature: -20°C~80°C
- Relative humidity: 10%~93% (non-condensing)
- Shock protection:
↪ mSATA/eMMC: 50G, half sine, 11ms, IEC60068-27
- Vibration protection w/ mSATA or eMMC condition:
↪ Random: 2Grms @ 5~500 Hz, IEC60068-2-64
↪ Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

Certifications

- CE Approval
↪ EN61000-6-2
↪ EN61000-6-4
- FCC Class A

Touch

- 5-wire resistive (flush panel type)
- Light transmission: 80±3%
- Interface: USB

System

- CPU (optional): support 4th gen. Intel® Core™ i processor family, LGA1150 socket type
↪ Core™ i5-4570TE, Dual Core, 2.7GHz, 4M Cache (maximum frequency 3.3GHz if turbo boost enabled )
↪ Core™ i3-4340TE, Dual, Core, 2.6GHz, 4M Cache (no turbo boost)
↪ Pentium® G3320TE, Dual Core, 2.3GHz, 3M Cache (no turbo boost)
↪ Celeron® G1820TE, Dual Core, 2.2GHz, 2M Cache (no turbo boost)
- BIOS: AMI BIOS
- System chipset: Intel® Q87 PCH
- System memory (optional): 2 x 204-pin DDR3/DDR3L SO-DIMM socket, support up to 16GB DDR3/ DDR3L 1333/1600, non-ECC and unbuffered
- Storage device:
↪ 1 x External locked CFast socket
↪ 1 x mini-PCIe w/o SIM card holder slot to support mSATA storage
↪ 1 x Hard drive bay: support 1 x 2.5" SATA HDD/SSD (optional)
- Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)
- H/W status monitor: monitoring system temperature and voltage
- Expansion:
↪ 2 x mini-PCIe sockets (support optional Wi-Fi or 3.5G module/ NVRAM/mSATA storage)
↪ 2 x Expansion slots for add-on PCI or/and PCIe cards (optional)
↪ 1 x PCI and 1 x PCIe x4 slots
↪ 2 x PCIe x4 slots
↪ 2 x PCI slots
↪ 1 x PCIe x16 slot
↪ 1 x Front accessible USB 2.0

Rear I/O

- 1 x PS2 for keyboard/mouse
- Ethernet: 2 x RJ45
- 2nd/3rd display: additional independent DisplayPort: 1 x DVI-I (DVI-D + DVI-A) and 1 x DisplayPort
- Audio port: 1 x Line-out; 1 x Line-in; 1 x Mic-in
- USB: 4 x USB 3.0
- 3-pin remote power on/off switch connector
- Reset button
- COM#1: RS232/422/485 w/ 5V or 12V selection
- ATX power switch

Top I/O

- COM#2 RS232/422/485 w/ 5V or 12V selection

Audio

- HD codec: Realtek ALC886-GR
- Audio interface: Line-out/Line-in/Mic-in audio jack

Ethernet

- LAN chip: dual Intel® I210IT Gigabit LAN
- Ethernet interface: 10/100/1000 Base-Tx Ethernet compatible

Fieldbus

- Support up to two Fieldbus module

Mechanical & Environment

- Color: Pantone 432C\RAL 70 24 front bezel
- IP protection: IP66 front
- Mounting: panel/wall/stand/VESA 100mm x 100mm
- Power:
↪ Power input: 12~30 VDC
↪ Power connector: 3-pin PHOENIX connector
- Vibration:
↪ IEC 68 2-64 (w/ HDD)
↪ 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)
↪ 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating)
↪ 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)
- Shock:
↪ IEC 68 2-27
↪ HDD: 20G @ wall mount, half sine, 11ms
- Operating temperature:
↪ Resistive: -10°C to 50°C
- Storage temperature: -20°C to 75°C
- Operating humidity: 10%~90% relative humidity, non-condensing (for IPPC A1970T series, limits to be at 90% RH at max 50°C)
- Dimension: 470 x 400 x 104.9 mm
- Weight: 10.3kg (barebone)

Certifications

- CE (including EN61000-6-2/EN61000-6-4)
- FCC Class A
